Introducing the Jaiabot™
JaiaBots are low cost, micro-sized, high speed Aquatic Drones for data collection and payload delivery. The vehicles are ultraportable and can be launched from almost anywhere, including the surf zone, riverbank, dock, or watercraft. The JaiaBot System is modular enabling rapid integration of different sensors and payloads.
The ease of use minimizes operator training time and maintenance needs. This rugged and reliable aquatic drone can realistically and feasibly scale your data acquisition by using a pod of JaiaBots at an unprecedentedly low cost.
Weight: 3 kg / 6.5 lb | Hull Diameter: 7 cm / 2.75” | Length: 96 cm / 38”
Speed > 3.5 m/s or 7kn | Depth Rated 60 m / 197 Ft
Surface Range 11 km / 7 mi
Positional Accuracy < 3 m / 9.8 ft | Security AES 128 / 256 Encryption
specifications are subject to change without notice
Data
Jaiabot™ Features

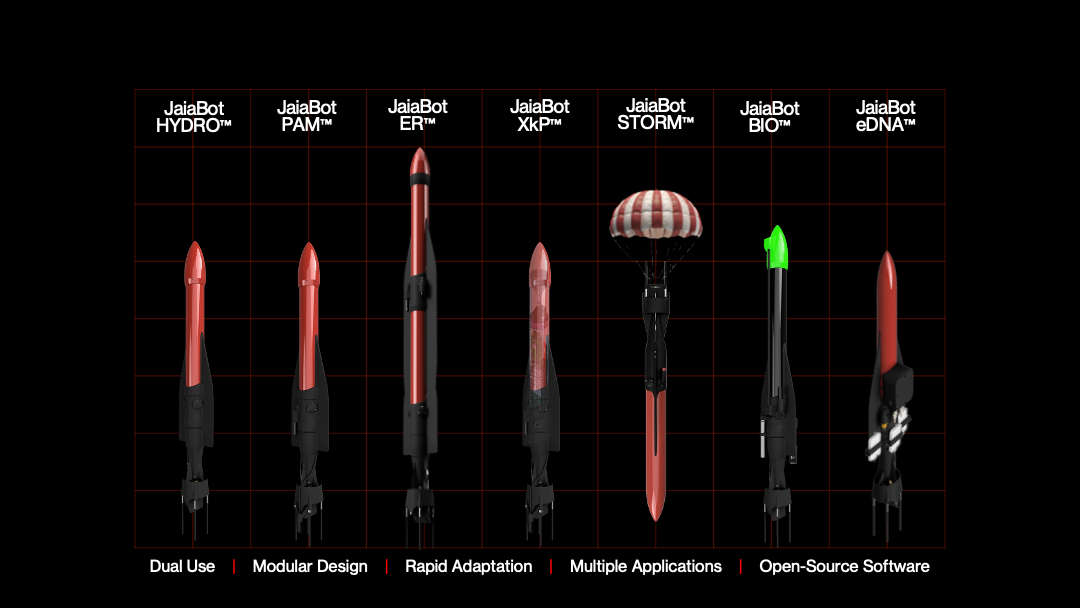

JaiaBot™️ System Product Features
This core product offers multi vehicle pods providing orders of magnitude savings in operational times and personnel needs. Large area, surface to seafloor coverage provides volumetric data sets at an unprecedented low cost. Hydrographic and surf zone observations ensure safe amphibious surf zone and mine countermeasures operations. Wet gap crossing assessments are carried out in minutes not hours, with no personnel on the water. Provides real time bathymetry, current vectors, wave heights, bottom type. These features included in all JaiaBot models.
Passive Acoustic Monitoring capability via integrated hydrophone allows recording of offshore wind construction, marine mammals, as well as surface and subsurface vessels. Applications in fisheries, offshore renewables, and port security. JaiaBot-HYDRO capabilities included.
A complete profile diving water quality assessment tool which collects data at a fraction of the cost and time of any system on the market -for customers collecting water quality and environmental data. The BIO provides a camera for bottom pictures, wet mate connector for multiple fluorometer types and sensing for dissolved oxygen, pH, conductivity, temperature, and depth and all JaiaBot HYDRO capabilities.

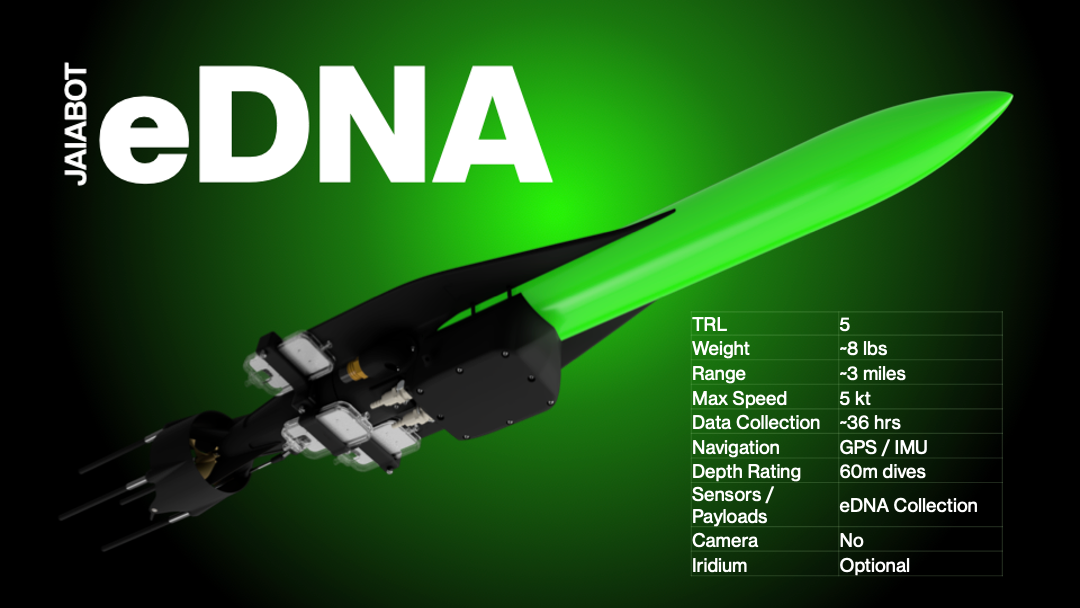

JAIABOT™ eDNA
Includes onboard water filtration in addition to standard CTD capabilities. Includes peristaltic pump and three silphium filters. Captures water samples for genomic analysis to identify biodiversity, invasive species, or pathogens. Ideal for missions requiring bio-signature mapping, aquatic health indicators, or biological surveillance. Compact and configurable for recurring sampling operations.

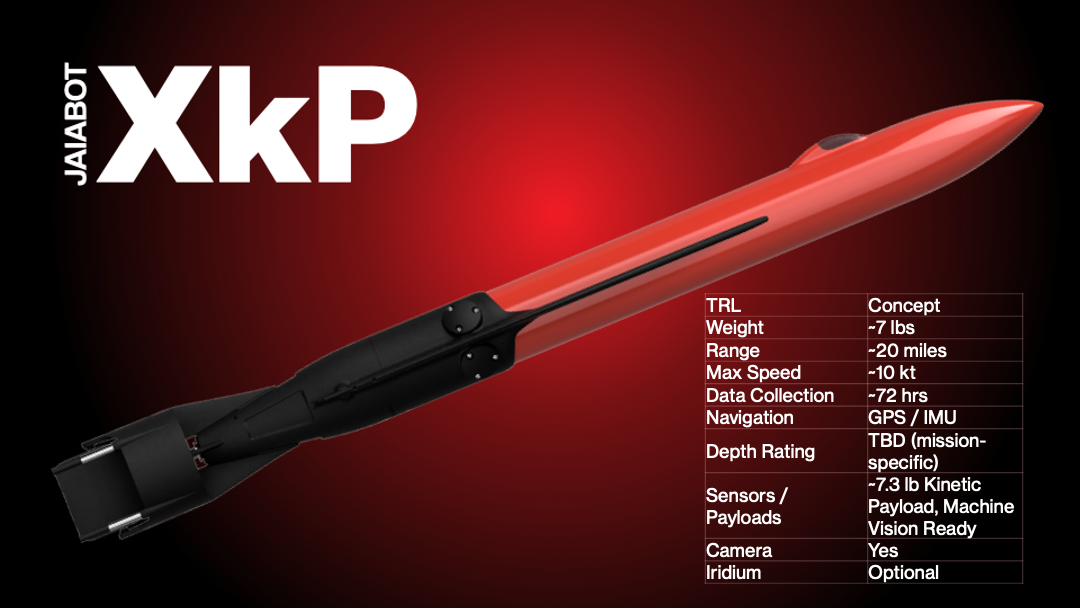

Payload delivery vehicle. Customizable kinetic payload and fitted with a camera ready for machine vision integration to support navigation and ATR. Hydro model features are available in all JaiaBot models.
The simple addition of an energy payload section to the JaiaBot ER (Extended Range) triples its’ endurance enabling JaiaBot to collect data continuously up to 115 hours, or 20+mile range. Option to add Iridium-based satellite comms in addition to the standard line of site RF comms. Hydro model features are available in all JaiaBot models.
Launchable from air to collect wind speed, humidity, temp and pressure. Can withstand impact into water and measure CTD, wave heights, currents. Currently in development through NOAA SBIR phase II grant for hurricane hunter launch.
Plan your missions from your tablet, laptop, or phone in minutes and change them on the fly with Jaia’s highly intuitive user interface. Plan multi-vehicle missions from anywhere to anywhere in the world. Training takes less than 1 day.
Interested in collecting aquatic data without owning a fleet? Jaia as a Service (JaaS) provides the ability for customers to utilize Jaia’s in-house fleet to conduct data collection. The field team will work with customers to identify their needs, configure the system to collect the parameters of interest, plan the missions, and operate the vehicles. JaaS can be utilized as a one-time service or a subscription to routinely monitor parameters in an aquatic region.
Plan your missions from your tablet, laptop, or phone in minutes and change them on the fly with Jaia’s intuitive user interface, Jaia Command and Control. System status and user selectable data sets displayed in real time.
